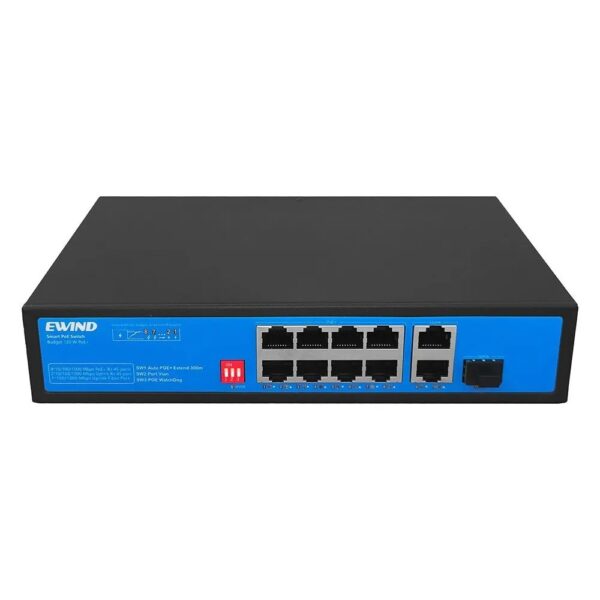

8 Port Gigabit PoE Switch with Build-in Power Supply

Model EW-S1811CG-AP Fixed Port 8*10/100/1000Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX Uplink RJ45 ports (Data) 1*10/100/1000Base-T/TX SFP Ports(Data) POE Port Port 1-8 support PoE Feature With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-8 Port support each port Isolation & VLAN; D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3x Ethernet Port Feature 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive Fiber Port Feature Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC) Forwarding Mode Store and Forward Switching capacity 22Gbps Buffer Memory 4M MAC 4K Forwarding Rate 16.368Mpps Twisted Pair Transmission 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter) Power Supply Pin Default 1/2( ), 3/6(-); MAX / AVERAGE Power Per Port 30W/15.4W Total PWR / Input Voltage 120W Power Consumption Standby:
