Acewell 3963 Digital Speedo & Gearbox Speed Sensor for BMW R2V Twin Motorcycles

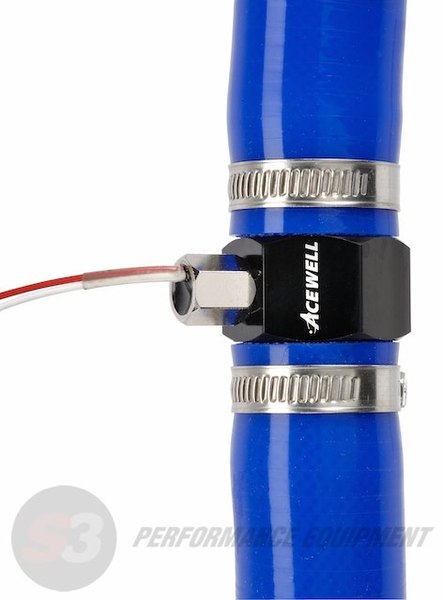

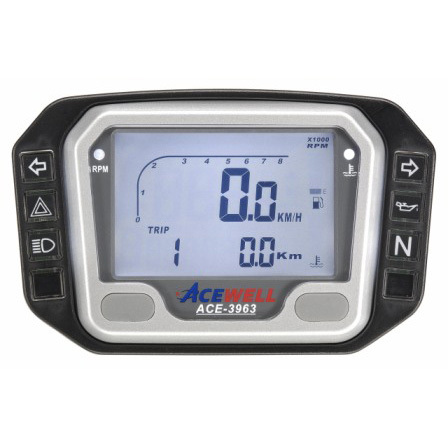

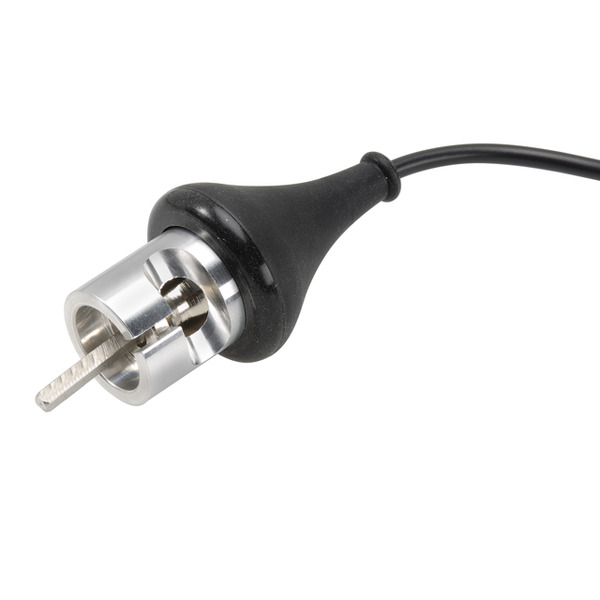

Description The Acewell 3963 is a fully featured digital speedometer & tachometer with the addition of a water temperature gauge and volt meter. This bundle also includes the ACE-S11 gearbox speed sensor which is compatible with BMW boxer motorcycles using a speedometer gear output. It suits all R2V R2 Valve Twin Cyclinder models from 1970 – 1996. Circumference setting is 1400mm for R100GS, 1380mm for high gear ration R100GS. Features: – 100% Waterproof – Backlit LCD screen, easy to read – Optional tachometer scales of 10,000rpm or 20,000rpm. – ADR compliant pilot lights – Hour meter and Odometer readings stored in internal menory – Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness. – ADR approved for road use for both motorcycle and passenger vehicles Functions: – Bar Graphic Tachometer 500-10,000RPM, or 1,000-20,000RPM – Digital Tachometer 100-10,000RPM or 100-20,000RPM – RPM shift warning light – Temperature gauge 50 – 160C – Temperature warning light – Battery Volt Meter 8.0 – 25.0V – Speedometer 2.4-399km/h – Max Speed 2.4-399km/h – Average speed 2.4-399km/h – Trip Meter (1 & 2) 0-999km – Odometer 0-999,999km – Clock 12 or 24 hour option – Hour Meter 0-9999 hours – Total Hours 0-9999 hours – Bar Fuel Meter 0-7 bars Specifications: – Power Input: DC 12V – Tachometer input: CDI or Ignition Coil Signal – Speed Sensor: BMW Gearbox Drive Kit Includes: – Speedometer head unit – Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO) – Loom extention – BMW Gearbox Speed Sensor – ACE-S11 – Wiring diagram Wiring diagram Click here to download the ACE-3963 wiring diagram Dimensions: 122 x 77 x 25mm
