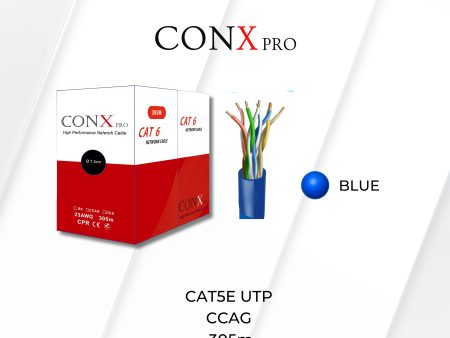

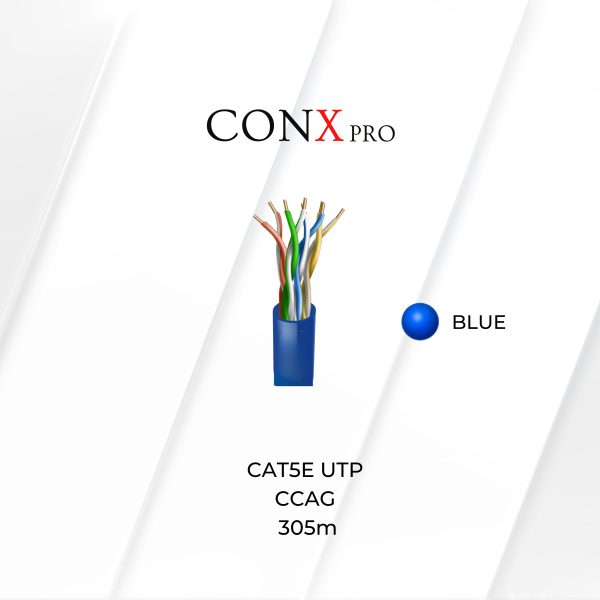

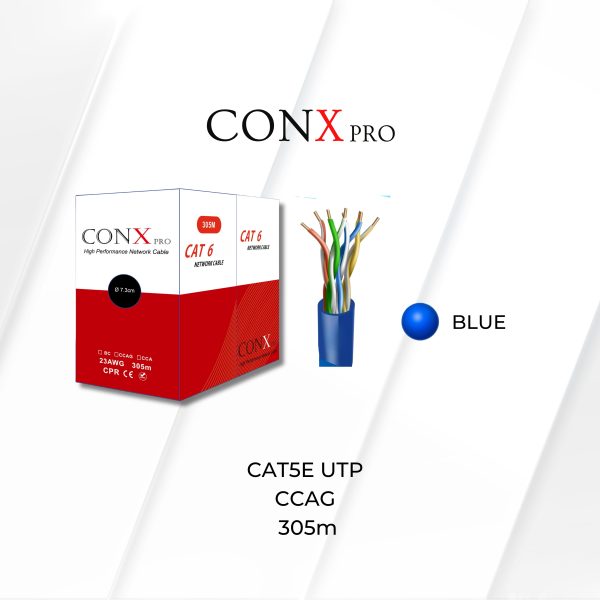

305m CAT5E UTP CCAG

CAT5E CCAG Conductor High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc. Exceeds TIA/EIA-568B.2,ISO/IEC 11801 , ETL listed . 100Base-TX,100Base-T2 and 100Base-T4 standard. Can be used for voice, integrated service data network (ISDN). Long transmission distance, small transmission loss, wear resistance, resistance to pressure. Specification                             Cable Construction(CAT5e)  Item No. 214402 214302 Construction UTP UTP/M Conductor Dimension(Mm) 0.51 0.51 Core Dimension(Mm) 0.96 0.96 No.Of Pairs 4 4 Nom.Od(Mm) 5.2 5.2 Type Of Jacket PE/PVC/LSZH PE/PVC/LSZH Electrical Characteristics Frequency(Mhz) 1 4 8 10 16 25 31.25 62.5 100 155 200 310 350 Impedance(ω) 100±15 100±18 100±22 Rl(Db) 20 23 25 25 25 24 24 22 20 17 19 18 17 Attenuation(Db/100m) 2.0 4.1 5.8 6.5 8.2 10.4 11.6 17.0 22.0 28.1 32.4 41.8 44.9 Next(Db/100m) 65.3 56.3 51.8 50.3 47.3 44.3 42.9 38.4 35.3 33.0 31.0 28.0 27.0 Elfext(Db/100m) 63.8 51.7 45.7 43.8 39.7 35.8 33.9 27.8 23.8 20.0 18.0 14.0 13.0 Ps Next(Db/100m) 62.3 53.3 48.8 47.3 44.2 41.3 39.9 35.4 32.3 29.0 28.0 25.0 24.0 Ps Elfext(Db/100m) 60.8 48.7 42.7 40.8 36.7 32.8 30.9 24.8 20.8 17.0 15.0 11.0 10.0 Propagation Speed 0.65c
