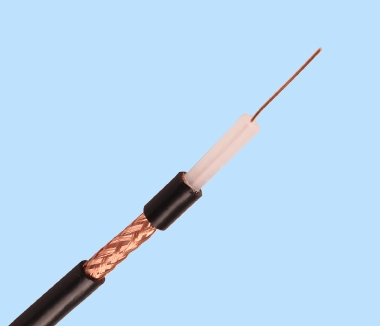

100m RG59BU Coaxial Cable

Physical Dimensions Component RG59/BU Conductor Material CCS/ Dia. (mm) 0.584±0.01 Dielectric Material Solid PE Dia. (mm) 3.70±0.10 Shield Material BC/BCCA Braid Coverage 95% Jacket Material PVC Dia. (mm) 6.10±0.10 Electrical Characteristics Impedance(Ω) 75±3 Velocity of Propagation 66% Capacitance(pF/m) 67.3 Nominal Attenuation [@ 68° F. (20° C)] Frequency(MHz) Attenuation (dB/100m) 10 3.6 50 7.9 100 11.1 200 16.1 400 23.0 700 31.8 900 36.4 1000 39.4
